ENGRAVING

MENU

1. Introduction

Engraving holds a special place among the crafts of horology. It involves removing material using a cutting tool, called a Graver. This gesture transforms a neutral surface into a unique and personalized piece. Engraving can be used to identify an object, for example a manufacturer or an owner. It can also become an art in its own right, purely decorative. Four main families of techniques stand out today. These are hand engraving, mechanical engraving, laser engraving, and chemical engraving. Each meets different needs, between precision, cost, and craftsmanship. Almost all the visible components of a watch can be engraved: the Case, the Movement, the Dial and the buckle. This text presents these techniques, their uses, and the types of engraving they allow to be produced.

2. Components that can be engraved

The Case

The Case is a favoured surface for Engraving. The Case back often carries technical information: the manufacturer’s name, serial number, or material indications. It may also bear a personalised Engraving, such as a dedication or a date. The Case middle and the Bezel also lend themselves to decorative motifs. An Engraving on the case enhances the value of the object and tells its story. It can be discreet or, conversely, highly ornamental, depending on the desired style.

The Movement

The Movement, although often invisible, frequently bears Engravings. The Main plate and the bridges traditionally display the manufacturer’s name and the Calibre number. These technical indications make it easier to identify and trace the piece. On watches with a transparent Case back, the Movement becomes a visible element. Manufacturers then add decorative Engravings, in addition to the usual finishes. This practice enhances the internal work, once reserved solely for Horologists (watchmakers).

The Dial

The Dial is the most visible element of a watch. It lends itself to artistic and meticulous Engraving. The Dial is often fixed onto an Engraver’s ball vice, a weighted rotating support. This device allows the craftsman to freely rotate the Dial under the Graver. A hand-engraved piece then becomes unique. It offers the wearer a true miniature work of art on the wrist. This work requires patience, precision, and great mastery of movement.

Buckle Engraving

The buckle, whether pin or deployant, can also be engraved. It often bears the manufacturer’s name or symbol. Decorative motifs can also adorn its visible face. An engraved buckle frequently echoes the style of the case, for overall aesthetic consistency. Although discreet, it contributes to the overall identity of the watch.

3. Different Types of Engraving

Text Engraving

Text engraving remains the most common practice in watchmaking. It records the manufacturer’s name as well as a calibre or serial number. It can also indicate the number of jewels or other technical information. A personalized engraving may sometimes include a dedication or the owner’s initials. This type of engraving primarily serves to identify and authenticate the piece.

Decorative motifs

Decorative motifs enrich the aesthetics of a case, a dial, or a buckle. They may feature scrollwork, arabesques, or geometric patterns. Some motifs are inspired by guilloché (engine-turning), characterized by regular, repeated lines. Others evoke floral or architectural elements. These engravings contain no technical information. They serve purely aesthetic and stylistic purposes.

Figurative engraving

Figurative Engraving represents recognizable subjects: animals, portraits, landscapes or historical scenes. It requires great technical mastery, often combined with bas-relief or line engraving. Each piece engraved in a figurative manner becomes a unique work. This type of Engraving is reserved for the most exclusive creations. It transforms a functional component into a true work of art.

4. Hand Engraving

Hand Engraving remains the most artisanal method. The craftsman shapes the motif directly with the Graver, without a mechanical template. Regular sharpening of the tool is essential to the quality of the work. Each movement influences the depth and fineness of the lines obtained. This technique requires long training and great experience. It is reserved for exceptional pieces or limited series. Several hand Engraving methods coexist, each with its own codes. These are line engraving, champlevé, bas-relief and flinqué. They are presented in the following paragraphs.

Line Engraving

Line engraving involves cutting the pattern below the surface of the metal. The lines are fine, deep and regular. This technique is close to that used in copper engraving for printing. In horology, it is used to trace precise graphic patterns on a Dial or case. The contrast between the carved lines and the Polished background highlights the design. A varnish or patina can sometimes accentuate the hollows.

Champlevé

Champlevé involves hollowing out large surfaces around a motif. The design then remains visible at the original level of the metal. The surrounding background is lowered, creating a sharp relief between the two planes. This technique was historically used as a preparation for champlevé enamel. It can also remain visible, without enamel, for a purely engraved effect. Champlevé requires great regularity in the depth of the hollows.

Bas-relief

Bas-relief gives volume to the engraved motif. The craftsman progressively carves the material to bring out certain elements of the design. The motif then appears slightly raised in relation to the background. This interplay of reliefs creates effects of shadow and Light. Bas-relief thus comes close to a true miniature sculpture. It is often reserved for the most elaborate figurative Engravings.

“Flinqué” (engine-turned engraving)

“Flinqué” (engine-turned engraving) consists of engraving a very fine network of lines over the entire surface. These lines can be straight, wavy or crossed, depending on the desired motif. This Engraving traditionally served as a base for translucent Enamel. Light then passes through the Enamel and reflects off the engraved lines. This effect gives the piece a particular depth and brilliance. “Flinqué” (engine-turned engraving) requires extreme regularity in the spacing of the lines.

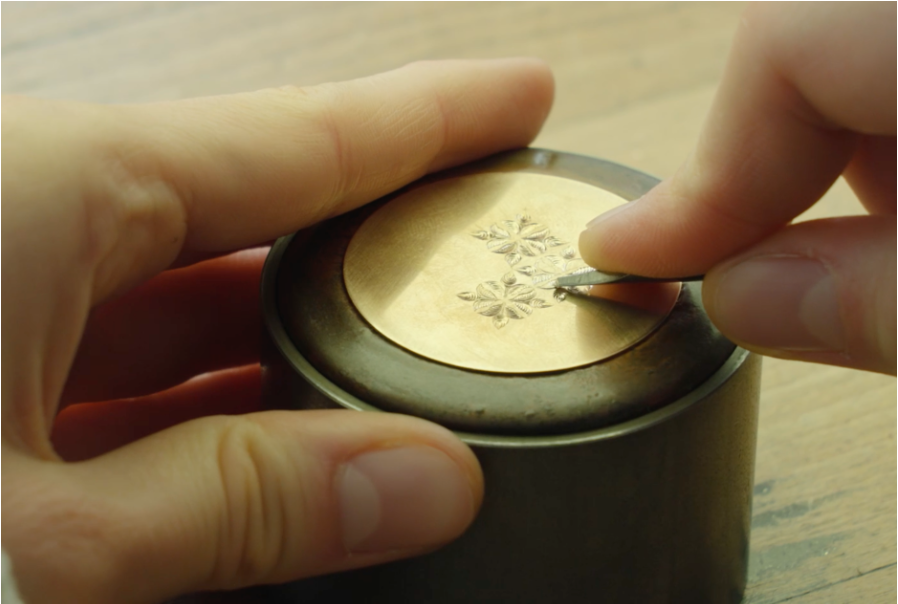

Figure 1

Hand engraving of a Brass plate (Dial)

Click on the thumbnail to enlarge it

5. Mechanical Engraving

Mechanical engraving relies on a machine to reproduce a pattern. The tool follows a template or a pre-programmed path, often with the help of a pantograph or a numerically controlled milling cutter. This method is faster than hand engraving. It allows the same pattern to be faithfully reproduced on several pieces. Mechanical engraving is well suited to technical inscriptions and large series. The machining marks resulting from the use of a milling cutter do not produce engraving as brilliant as hand engraving.

6. Laser Engraving

Laser engraving uses a concentrated beam of light to remove material. The heat from the laser locally vaporizes the surface of the metal. This technique is computer-controlled, ensuring high precision. It allows very fine text, such as serial numbers, to be engraved. No tool physically touches the piece during the operation. Laser engraving is now widely used in industrial production. However, it remains limited for the relief effects sought in artistic engraving.

7. Chemical Engraving

Chemical engraving relies on a controlled acid attack of the metal. The surface is first covered with a protective varnish, applied according to a precise pattern. The unprotected areas are then dissolved using a chemical bath. This method allows very fine patterns to be engraved on thin parts. It is particularly suited to delicate components of the Movement or the Dial. Chemical engraving offers good repeatability for large series.

8. Conclusion

Watchmaking Engraving illustrates the meeting between tradition and technology. Artisanal methods today stand alongside high-performance industrial processes. Each technique meets specific needs, whether precision, cost, or uniqueness. The choice of a method depends on the component, the budget, and the desired effect. The diversity of these know-hows reflects the richness of horological heritage. It continues to evolve, driven by passionate craftsmen and engineers.
