ESCAPEMENT WHEEL

FABRICATION OF AN ESCAPEMENT WHEEL THE ARTISANAL METHOD

Note: if you want to see this video in original language with English subtitles, click here, then press the CC button in the videoplayer.

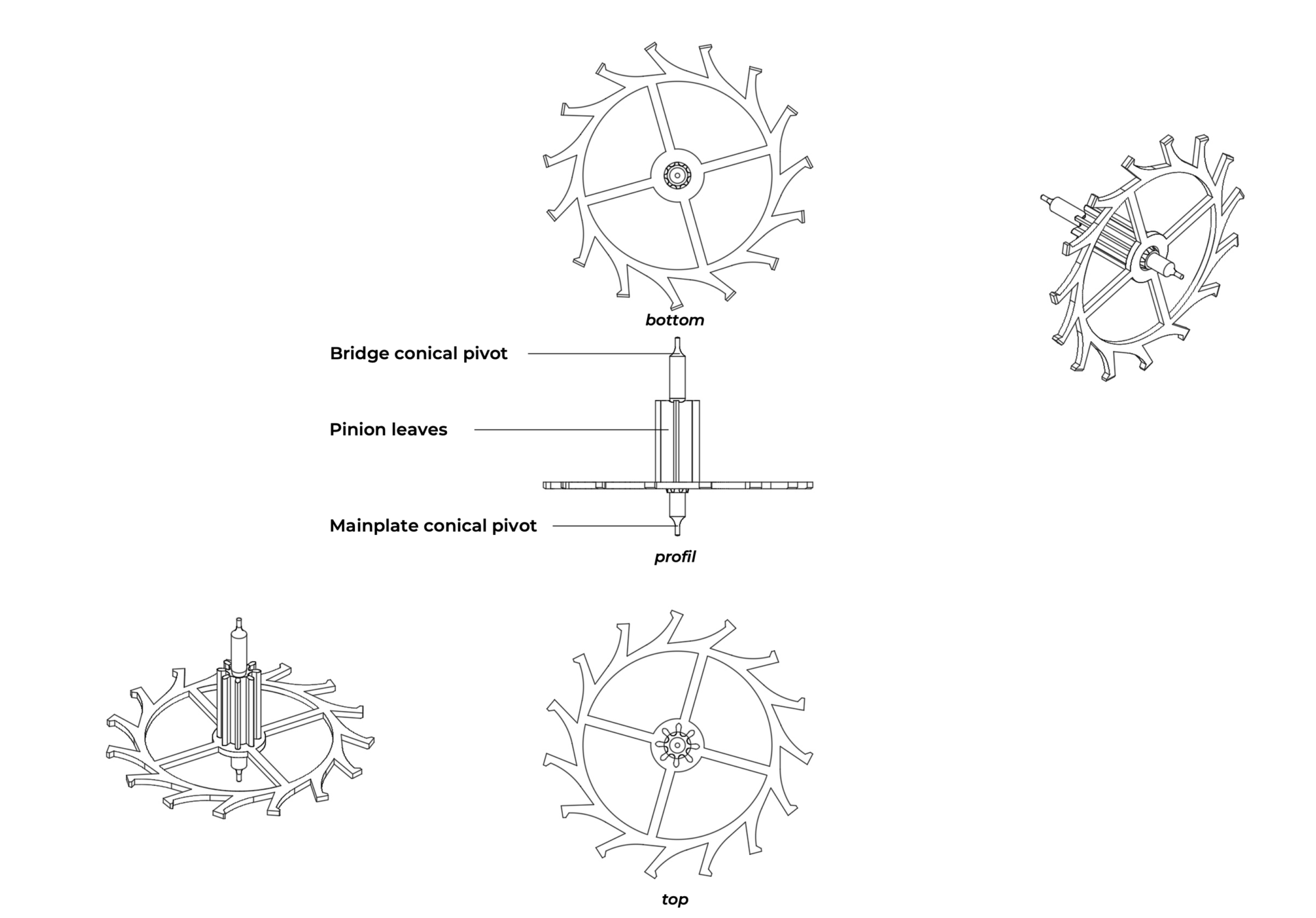

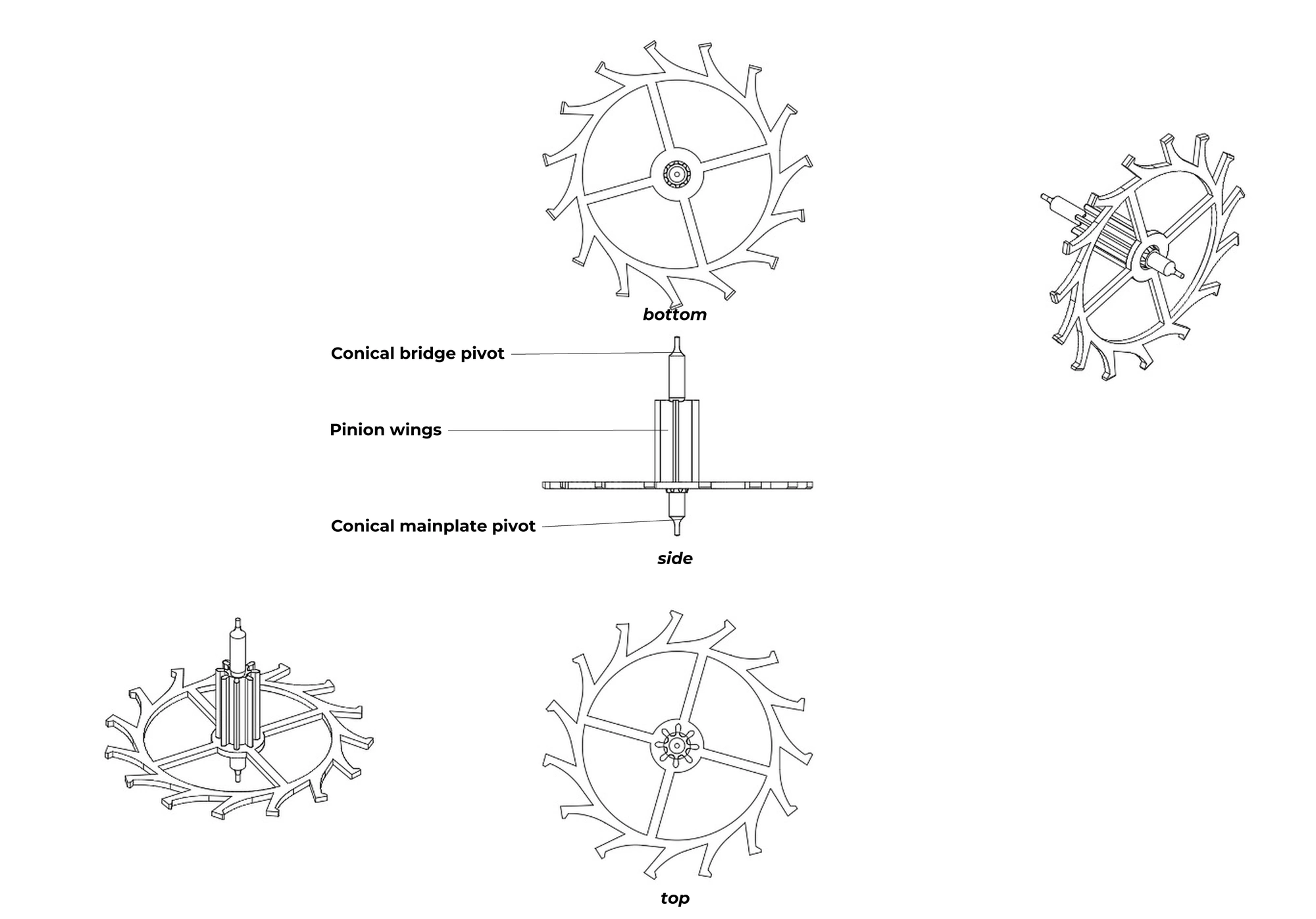

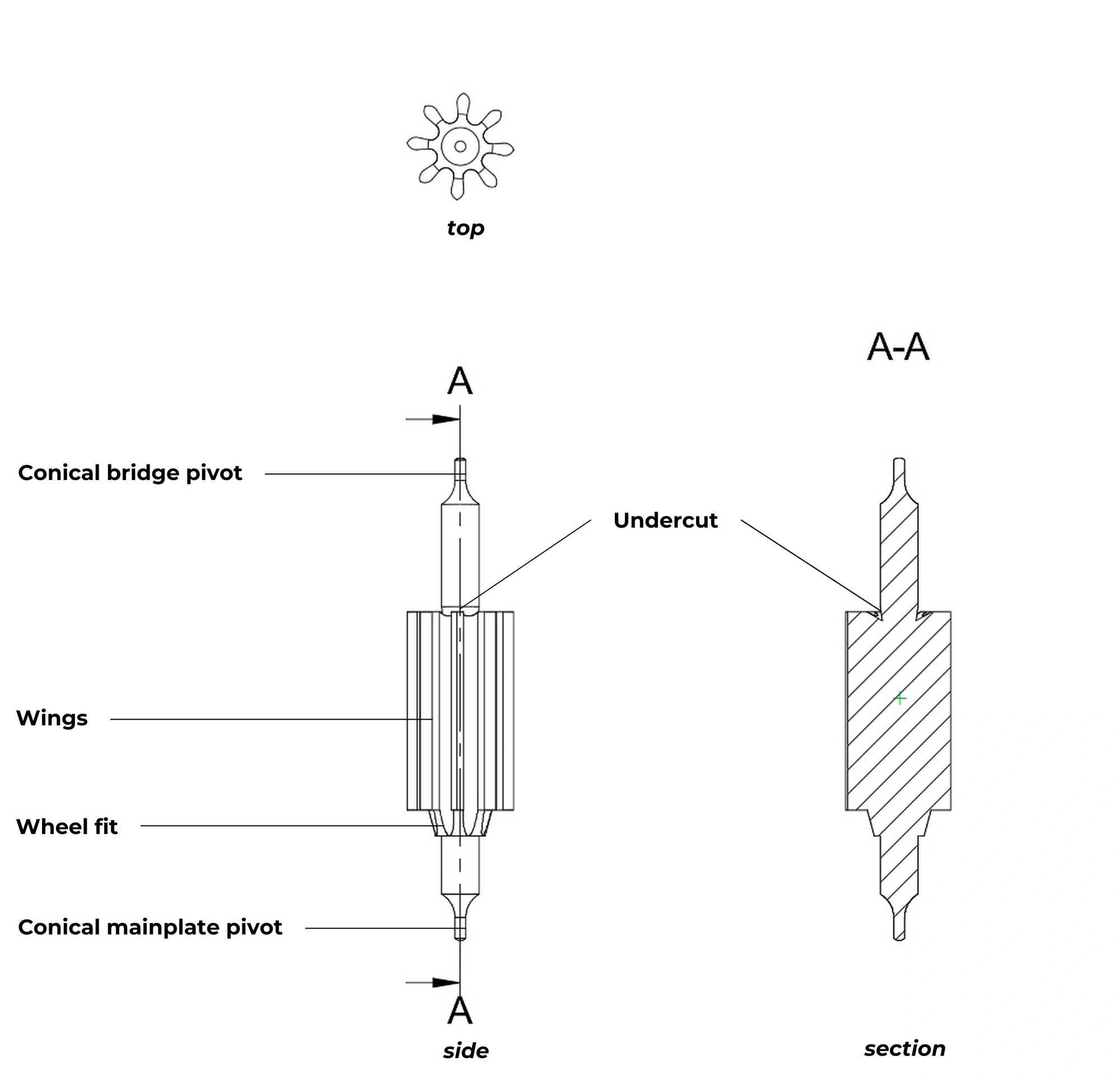

The escapement wheel can also be referred to as the lever wheel. In the kinematic chain of the movement, it is located following the seconds wheel. Like other wheels, the escapement wheel consists of a pinion and a wheel plate. While the pinion is similar to those of other wheels, the wheel plate distinguishes itself by the shape of its teeth and the material used in its fabrication.

Generally made of steel, the wheel plate may be made of gold or silicon depending on the manufacturing method and the type of escapement. Steel and silicon are preferred when the escapement wheel transmits its impulse to ruby pallets (e.g., Swiss lever escapement). Such material combination optimally limits friction.

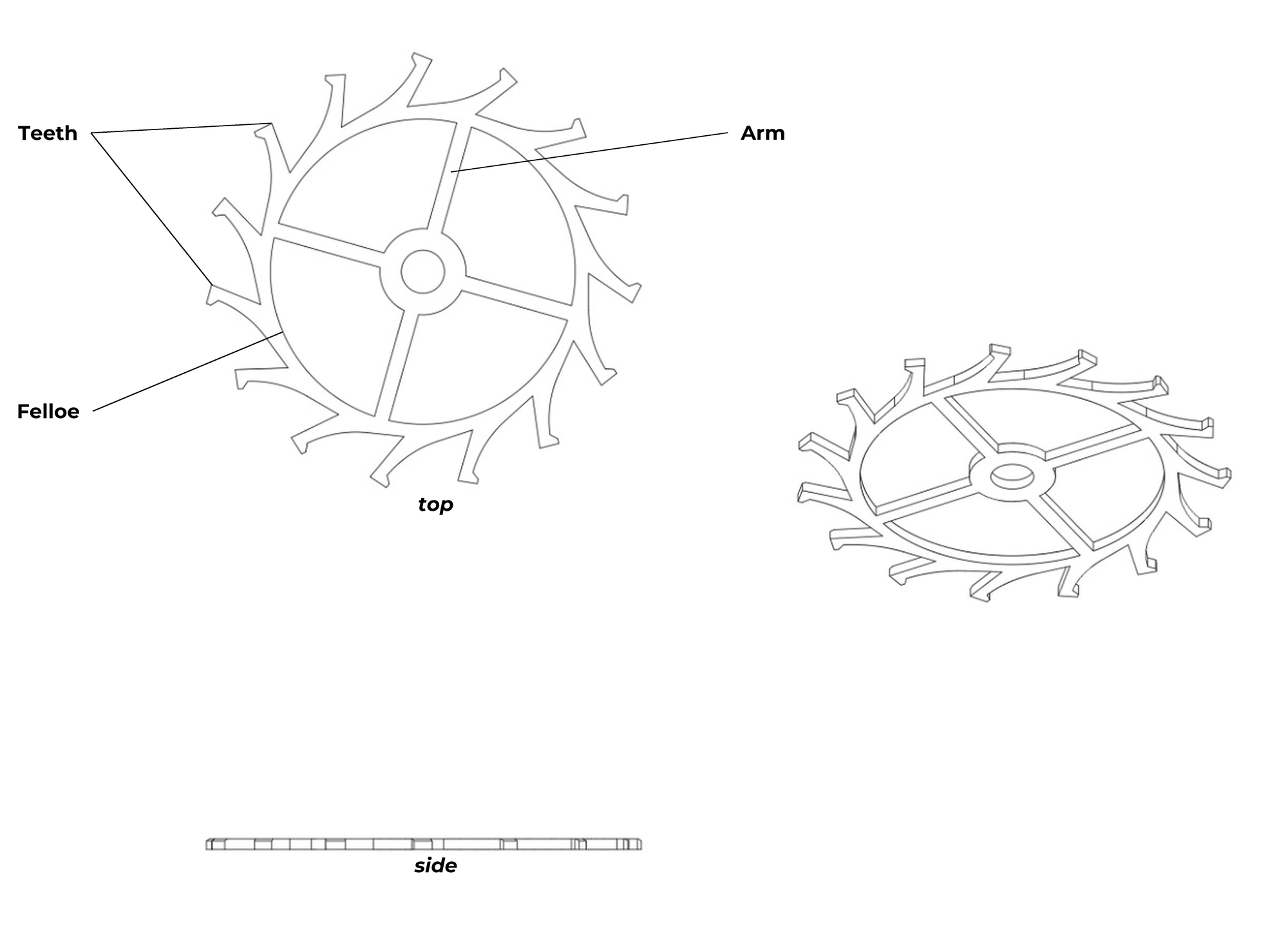

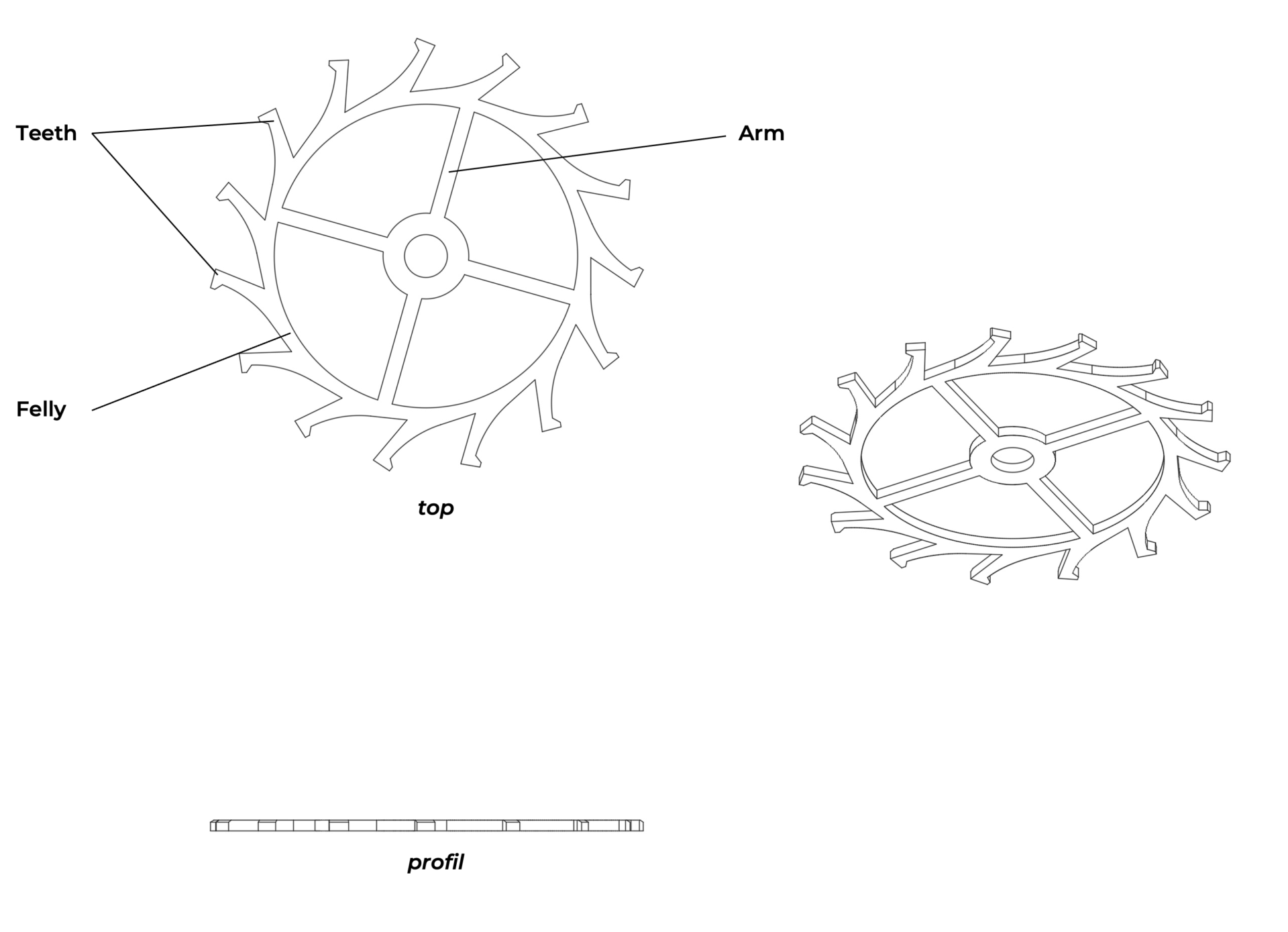

In the case of the Swiss lever escapement, which is used in 99% of modern watches, due to their small size and the rigidity of their material steel and silicon wheels typically have only four arms (compared to five for the wheels in the gear train). The wheel is thus lighter, which is a crucial quality for this component.

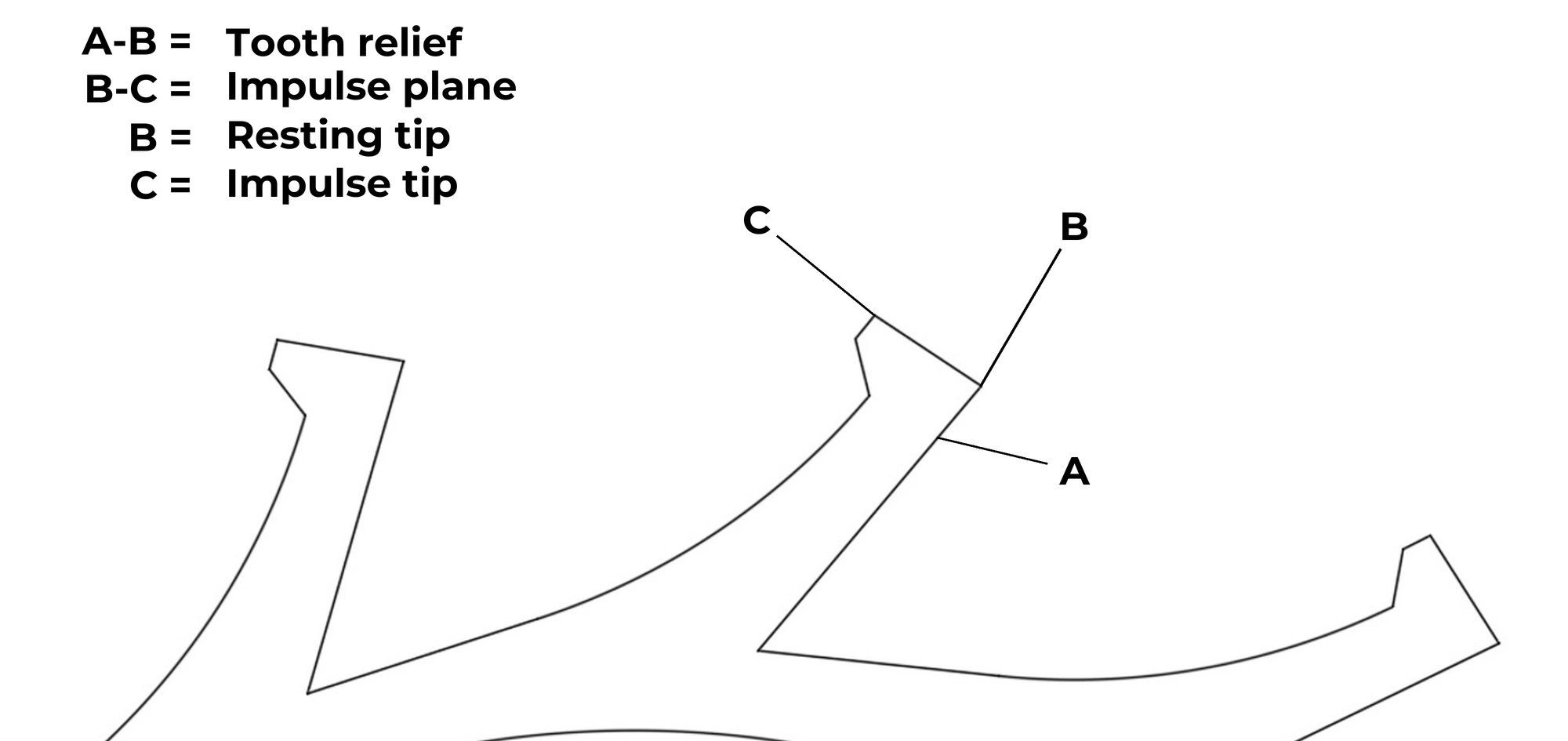

The specific teeth of the wheel are designed for their interaction with the lever and its pallets. The lever, escapement wheel, and double plate constitute the escapement, which serves a dual purpose: to stop the movement when the balance wheel freely oscillates and to transmit regular impulses to the regulating organ by transforming the rotational movement of the gear train into an oscillatory movement of the regulating organ.

The first escapements appeared in China in the 8th century. They continued to evolve, exhibiting a multitude of diversities, and were the ongoing result of research and studies aimed at improving their performance. The lever was invented by British scientist Robert Hooke in 1657. It initially only regulated clocks and became widespread for its precision and low energy consumption. One of the greatest challenges for watchmakers of the 18th century was finding escapement types capable of functioning in a pocket watch, with minimal influence from the watch’s positions and shocks.

The English watchmakers were the most inventive and prolific in terms of escapements. It was another English watchmaker, Thomas Mudge, who invented… the Swiss lever escapement. This escapement was initially produced for high-end watches before becoming widespread and establishing itself between the late 19th century and the early 20th century, with industrialization improving its precision and reducing manufacturing costs.

Progress in escapement calculations and the performance of tools and machines allowed, in the late 1960s, an increase in the number of teeth on the escapement wheel, achieving higher regulation frequencies (up to 5Hz).

The latest and one of the most significant evolutions arrived at the very beginning of the 21st century with the horological application of silicon produced by the photolithographic process. The advantages of this industrial method are numerous: escapement wheels no longer require expensive cutters for tooth cutting, the material can be maximally lightweight, and it is non-magnetic.

Depending on the type of escapement, different materials may be used for the fabrication of the escapement wheel plate, and the manufacturing operations may differ accordingly. In the case of a Swiss lever escapement, the escapement wheel will generally be made of steel. The craftsman will proceed using the same method as for a traditional wheel plate. However, tooth cutting requires the use of up to four different mills. This can be done using a gear-cutting machine or a lathe with a dividing plate. The cost of mills and the numerous operations required for their production make the escapement wheel a particularly expensive component to manufacture.

Traditionally, the surfaces of the escapement wheel are polished. This finishing prevents the oil, which limits friction between the escapement wheel teeth and the lever pallets, from sliding off the flats of the wheel. A surface treatment of the wheel, called epilamation, also helps contain the oil in the tooth profile preventing it from spreading onto the plate surfaces.

Industrially, the escapement wheel is turned and machined using an automatic lathe, which can also mill the arms of the plate. Tooth cutting is done on a gear-cutting machine and requires, in this case as well, the use of several mills and many cutting operations.

The material (silicon) and the manufacturing process described here are identical to those used in the production of integrated circuits. Introduced in watchmaking at the very beginning of the 21st century, this method offers numerous advantages.

The principle is to cut (engrave) a silicon plate to a given thickness (generally that of the finished component) using the photolithographic process. This method allows for the realization of the most complex profiles with a precision reaching the micron. Depending on the size of the components to be made, several hundred pieces can be produced simultaneously on the same substrate plate. The most complex profiles can be obtained without the inconvenience of the radii of a milling tool or even the wire of an electrical discharge machine. As this process exerts no mechanical stress, it is possible to produce very thin components (springs, etc.) or pierce them to limit weight, which is particularly beneficial for the escapement wheel.

Silicon is a material that is harder than steel, has excellent elasticity, and is non-magnetic. The progress of this technology and its success make it increasingly attractive in terms of production costs and tend to become widespread for the manufacture of many components (especially for the escapement wheels and the regulating organ).
